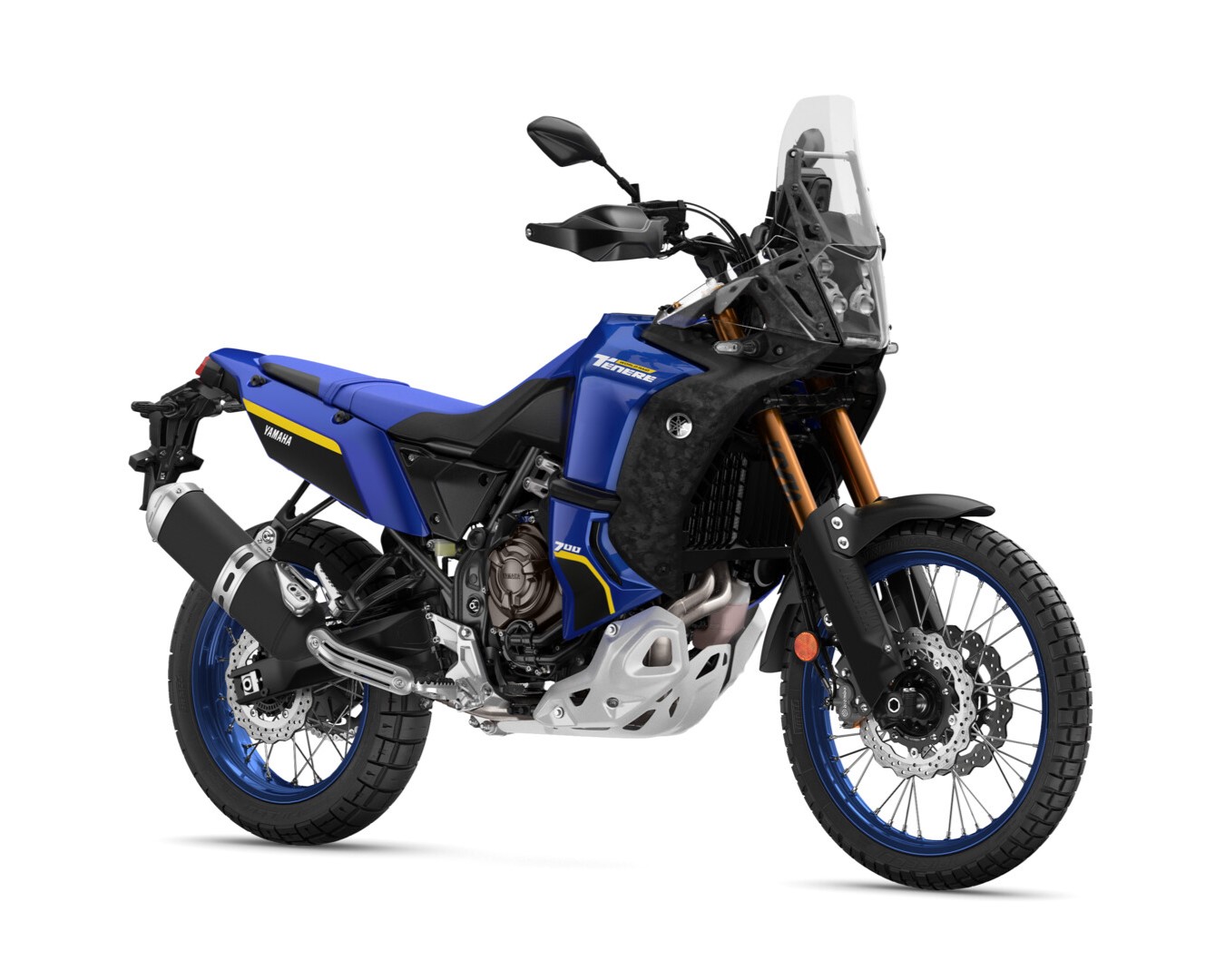

TÉNÉRÉ 700 WORLD RAID

Aluminium piggyback rear shock, 220 mm wheel travel

• High windscreen, easy to remove side deflectors and LED flashers

• Fully new cockpit area and new front cowling

• New larger rider footrests with easy-to-remove rubber inserts

• 3-piece aluminium engine guard

• New aluminium die-cast engine support

• New radiator grille

Ténéré 700 World Raid standard features

• Quad LED headlights, LED taillight

• Position adjustable (5 mm) front mudguard

• 282 mm dual wave front discs, Brembo calipers, ABS

• 245 mm rear wave disc, Brembo caliper, ABS

• High tensile steel tubular backbone/

double cradle frame

• Gravity cast aluminium swingarm

36-spoke lightweight aluminium
wheels
• Tapered aluminium handlebars Pirelli
Scorpion Rally tyres, 90/90-21 front,
150/70-18 rear
• High-torque CP2 engine
• Air cleaner box with forward facing
intake duct

• Engine TypeLiquid-cooled, 4-stroke, DOHC, 4 valve, 2-cylinder
• Displacement (cc)689.0
• Bore x Stroke (mm)80.0 x 68.6
• Compression Ratio11.5 : 1
• Lubrication SystemWet Sump
• Fuel ManagementFuel Injection
• IgnitionTCI
• Starter SystemElectric
• Fuel Tank Capacity (L)23.0
• Final TransmissionChain
• TransmissionConstant mesh 6-speed
•

  • Frame TypeDouble cradle steel tube
  • Suspension FrontUpside down telescopic fork, 230mm travel
  • Suspension RearSwingarm (link suspension), 220mm travel
  • Brakes FrontHydraulic dual discs, 282mm, ABS
  • Brakes RearHydraulic single disc 245mm, ABS
  • Tyres Front90/90 R21 M/C 54V
  • Tyres Rear150/70 R18 M/C 70V
  •

    • Length (mm)2370
    • Width (mm)905
    • Height (mm)1490
    • Seat Height (mm)890
    • Wheelbase (mm)1595
    • Ground Clearance (mm)250
    • Wet Weight (kg)220

  •
