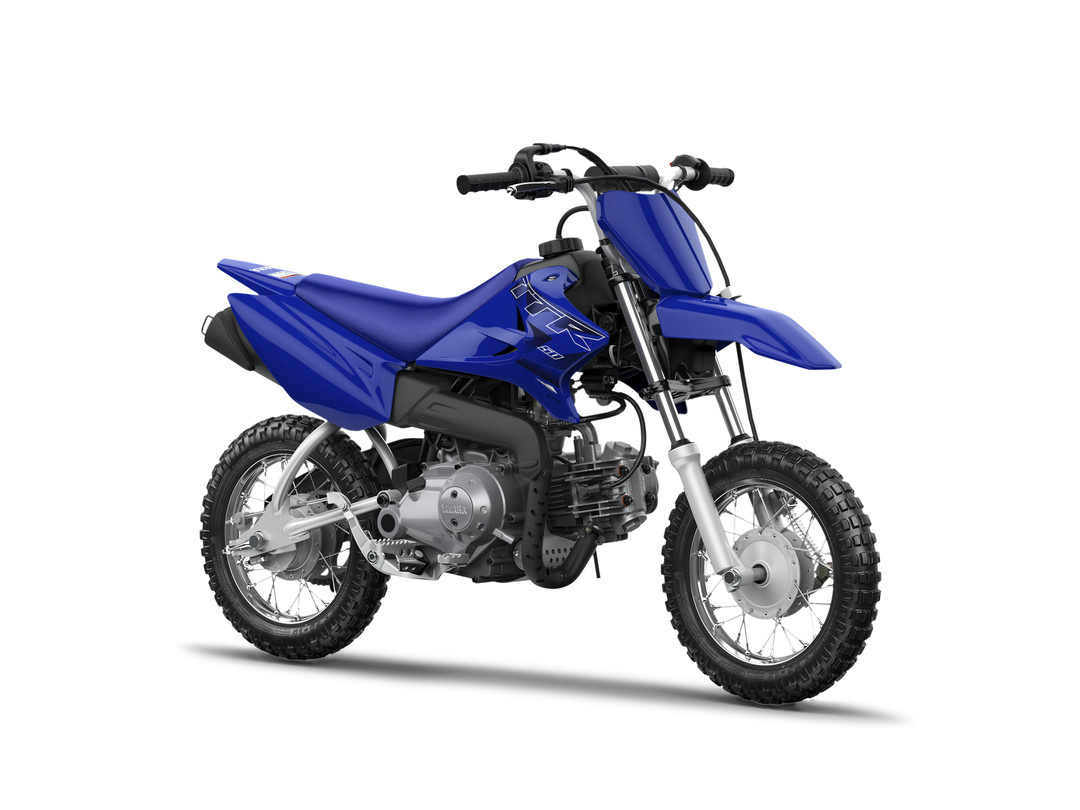

TT-R 50E
IDEAL FIRST FUN BIKE
ELECTRIC START - 3 SPEED SEMI AUTO GEARBOX
ADJUSTABLE THROTTLE LIMITER
The rock-solid TT-R50E’s electric starting and sweet, useable four-stroke power inspires confidence in kids and small novices – and in a full-face helmet, no-one can squeeze your cheeks.
49cc air-cooled, SOHC powerplant puts out smooth, reliable four-stroke power perfect for kids and small novices.
Three-speed gearbox with automatic centrifugal clutch makes learning to shift gears a breeze.
Inverted fork with 22mm sliders provides 96 mm of smooth front wheel travel for a great ride and handling. Rear travel is 71mm.
11mm Mikuni VM-type carburettor with automatic on/off electric heater ensures crisp, dependable throttle response.
Lightweight, upswept exhaust system contains a quiet, WR-type USFS approved spark arrestor.
Front and rear 80mm drum brakes deliver strong, dependable stopping power, and the rear’s activated by a right foot pedal just like the big YZs.
The TT-R50E gets the same pushbutton electric starting feature as our full line of electric-start TT-Rs.
Engine
Engine Type | Air-cooled, 4-stroke, SOHC, 2-valve |
---|---|
Displacement | 50 cc |
Bore x Stroke | 36.0 x 48.6 mm |
Compression Ratio | 9.5 : 1 |
Lubrication System | Wet sump |
Fuel Management | VM11 |
Ignition | DC - CDI |
Starter System | Electric |
Fuel Tank Capacity | 3 L |
Oil Capacity | 1 L |
Transmission | 3-speed |
Dimensions
Length | 1305 mm |
---|---|
Width | 595 mm |
Height | 795 mm |
Seat Height | 555 mm |
Wheelbase | 925 mm |
Ground Clearance | 135 mm |
Dry Weight | 54 kg |
Wet Weight | 57 kg with 3 litres of fuel |
Chassis
Suspension Front | Telescopic fork |
---|---|
Suspension Rear | Swingarm (monocross) |
Brakes Front | Drum |
Brakes Rear | Drum |
Tyres Front | 2.50-10 4PR |
Tyres Rear | 2.50-10 4PR |
