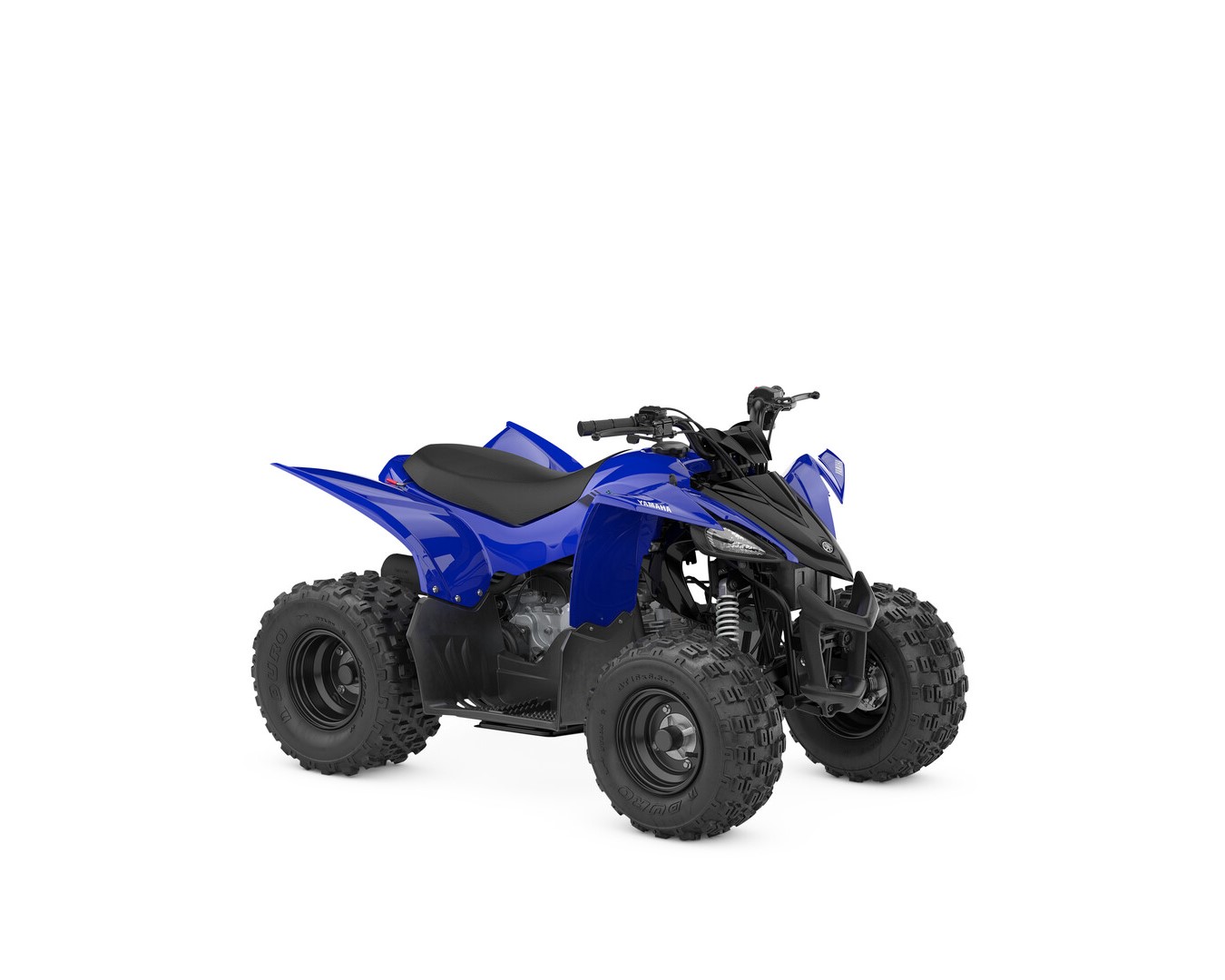

YFZ50R
SUPER SAFE!!
SPEED AND THROTTLE LIMITER
4 STROKE
ELECTRIC START
years of age and the whole family are preparing a lot of fun. Safety comes first. Therefore, the YFZ50 numerous functions was fitted, thanks to which parents receive a great deal of control. The speed can be throttled over a flow control screw and a speed limiter. With an emergency stop cord which is attached to a hold switch, the engine in no time can be switched off. The Yamaha YFZ50 offers driving fun without end, is simple in use and maintain so clearly the first choice for responsible adults. By inspired by the style of YFZ450R racing design of this mini-ATV offers everything would put a child on his wish list!
Electric start four-stroke engine runs a twist and go auto box. Power can be increased as skills develop.
The YFZ50’s chassis incorporates a comfortable and roomy rider position to allow young guns to grow and adjust their riding posture and position while offering years of enjoyment.
Newly designed shocks provide superior handling and comfort, increasing the fun and performance of the sporty ride.
Parents can feel confident introducing their six-year-old to ATV riding with parental controls integrated into the machine, including adjustable RPM and throttle limiters, as well as a tether switch capable of shutting off th
Engine
Engine Type | Single cylinder, 4-stroke, air-cooled, 2-valves |
---|---|
Displacement | 49.4 cc |
Bore x Stroke | 39.0 x 41.4 mm |
Compression Ratio | 8.5 : 1 |
Lubrication System | Wet sump |
Fuel Management | V12 x 1 |
Ignition | CDI |
Starter System | Electric & Kick |
Fuel Tank Capacity | 5.8 L |
Oil Capacity | 0.9 L |
Final Transmission | Chain |
Transmission | V-Belt Automatic |
Dimensions
Length | 1250 mm |
---|---|
Width | 820 mm |
Height | 770 mm |
Seat Height | 585 mm |
Wheelbase | 830 mm |
Ground Clearance | 88 mm |
Dry Weight | 94 kg |
Wet Weight | 100 kg with 5.8 litres of fuel |
Chassis
Suspension Front | Single A-arm, 60mm travel |
---|---|
Suspension Rear | Swing arm, 51mm travel |
Brakes Front | Drum |
Brakes Rear | Drum |
Tyres Front | AT 16x6,5-7 |
Tyres Rear | AT 16x7-7 |
