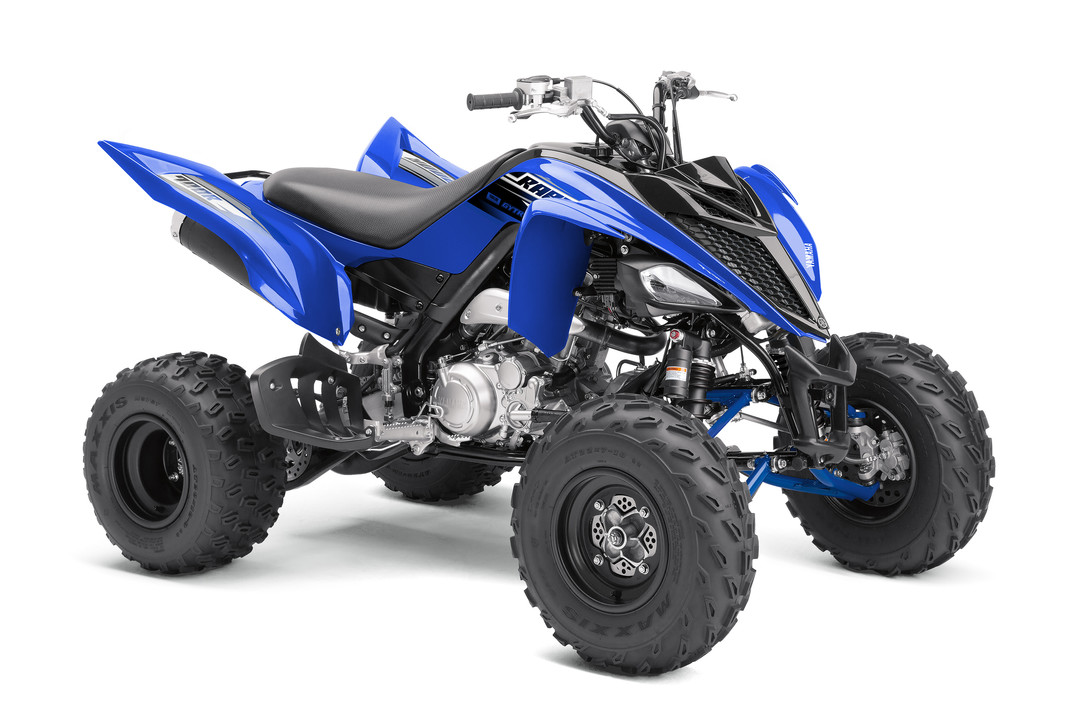

YFM700R
HIGH TECH 686cc FUEL INJECTED ENGINE
ADVANCED SUSPENSION
LARGE FUEL TANK
ADVANCED CHASSIS
Once you've ridden the YFM700R there is no turning back. Its mind bending power and handling offer the ultimate buzz on all sorts of terrain. And once you're hooked, this mighty ATV will transform your leisure time forever.
The gutsy 686cc 4-stroke engine comes with a series of new features that boost power for even faster acceleration. And with its reduced fuel consumption, the latest model takes you further between refills – handy when you are dominating the Dakar Rally.
Riding comfort is enhanced with a new rear shock - and larger 22-inch front tyres give you precise steering and added control. Because when you take your fun seriously, you need the ultimate performer.
- Engine TypeLiquid-cooled, 4-stroke, SOHC, 4-valve, single cylinder
- Displacement (cc)686.0
- Bore x Stroke (mm)102.0 x 84.0
- Compression Ratio10.0 : 1
- Lubrication SystemDry sump
- Fuel ManagementFuel injection
- IgnitionTCI
- Starter SystemElectric
- Fuel Tank Capacity (L)11.0
- Final TransmissionChain
- TransmissionConstant mesh 5-speed with reverse
- Frame TypeSteel tube
- Suspension FrontIndependent double wishbone, 230mm travel
- Suspension RearSwingarm (link suspension), 256mm travel
- Brakes FrontHydraulic dual discs
- Brakes RearHydraulic single disc
- Tyres FrontAT22 x 7-10
- Tyres RearAT20 x 10-9
- Length (mm)1845
- Width (mm)1155
- Height (mm)1115
- Seat Height (mm)830
- Wheelbase (mm)1280
- Ground Clearance (mm)113
- Wet Weight (kg)192
