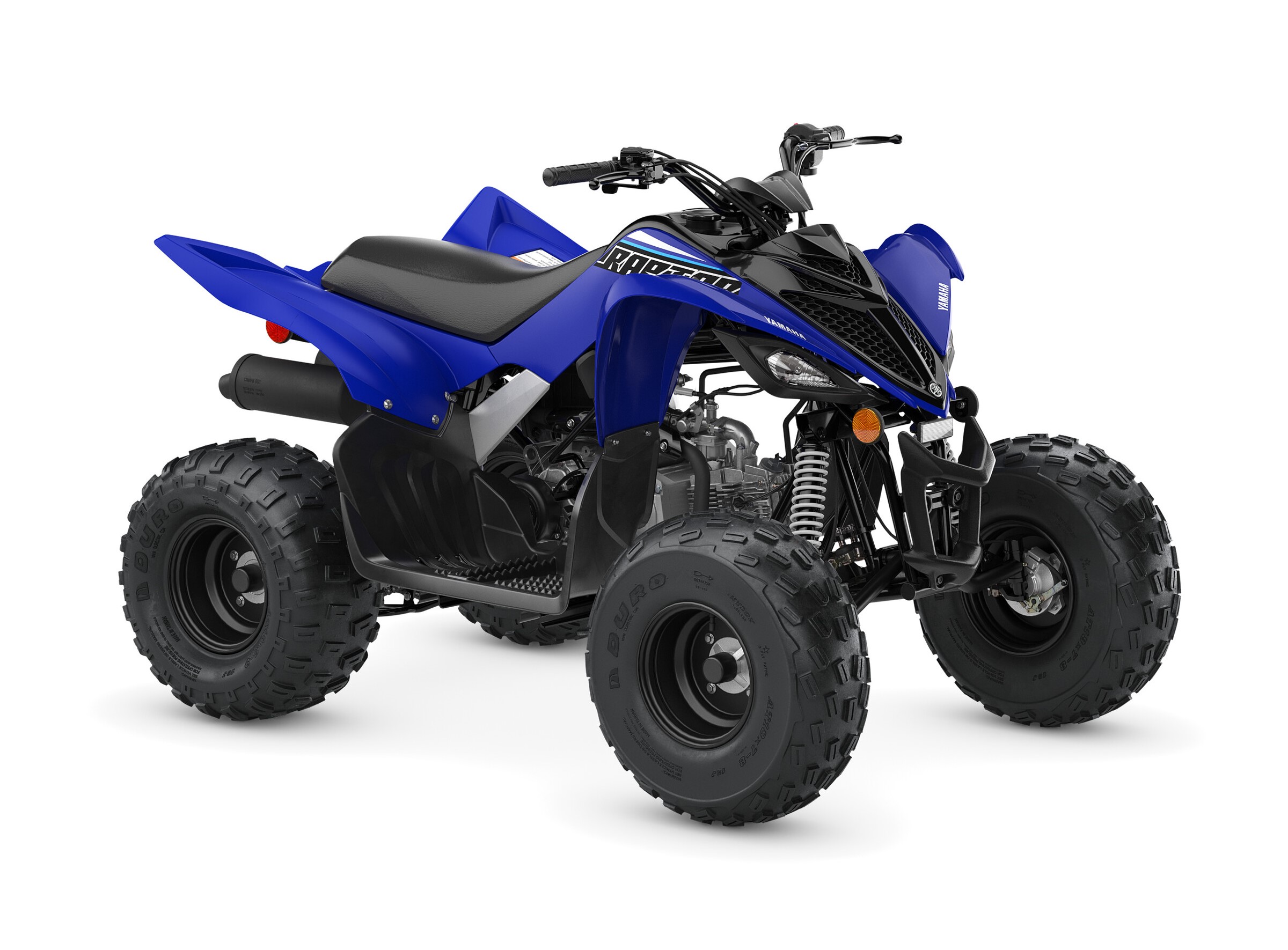

All-new from the ground up, Raptor 90 has the features to deliver more fun than ever before, with a 88cc SOHC 2-valve engine tuned to develop excellent low-to-mid rpm range performance. It also has features surprising in this class and price range, like a fully automatic CVT transmission, dual A-arm front suspension, low-profile tyres, and styling unmistakably inspired by the mighty Raptor 700R.
Dual A-arm front suspension has 78mm of travel for sporty-riding comfort, while adding to the Raptor 90’s big-ATV look. Shocks have 5-way preload adjustment to accommodate a variety of riders and terrain. The rear swingarm, also 5-way preload adjustable, offers 83mm of travel.
For sporty looks and handling, Raptor 90 uses low-profile tyres. For riding comfort, there are safe full floorbo
Engine
| Engine Type | Single cylinder, air-cooled, 4-stroke, SOHC 2-valve |
|---|---|
| Displacement | 89.9 cc |
| Bore x Stroke | 47 x 51.8 mm |
| Compression Ratio | 9.2 : 1 |
| Lubrication System | Wet sump |
| Ignition | CDI |
| Starter System | Electric & Kick |
| Fuel Tank Capacity | 6.6 L |
| Final Transmission | Chain |
| Transmission | Automatic, V-belt |
Dimensions
| Length | 1485 mm |
|---|---|
| Width | 1020 mm |
| Height | 955 mm |
| Seat Height | 750 mm |
| Wheelbase | 1030 mm |
| Ground Clearance | 100 mm |
| Dry Weight | 120 kg |
| Wet Weight | 126.5 kg with 6.6 litres of fuel |
Chassis
| Suspension Front | Independent double wishbone, 78mm travel |
|---|---|
| Suspension Rear | Swingarm, 83mm travel |
| Brakes Front | Sealed double drum |
| Brakes Rear | Sealed drum |
| Tyres Front | AT 18 x 7-8 |
| Tyres Rear | AT 18 x 9-8 |
